Spetec Pur H100 : Injection Resin 5 Gallon

$350.00

  • Water cut-off of large flow and high pressure water leaks.
  • Water cut-off of water leaks in foundations such as diaphragm walls,piling sheets and secant piles.
  • Stabilization and water cut-off of large cracks, voids and gravel layers.
  • Pre and post injections in mines, tunnels, pipe jacking, drill & blastand TBM applications.
  • Injections in combination with cement-based grout.
  • Crack and gravel layer injections in concrete structures.
  • Soil stabilization and anchors in porous geology.
  • Water cut-off of sewer water leaks and sewer stabilization.
  • Probe grouting for below grade pipes.
  • Manhole injections.

Data Sheet

8 in stock (can be backordered)

Category:

Description

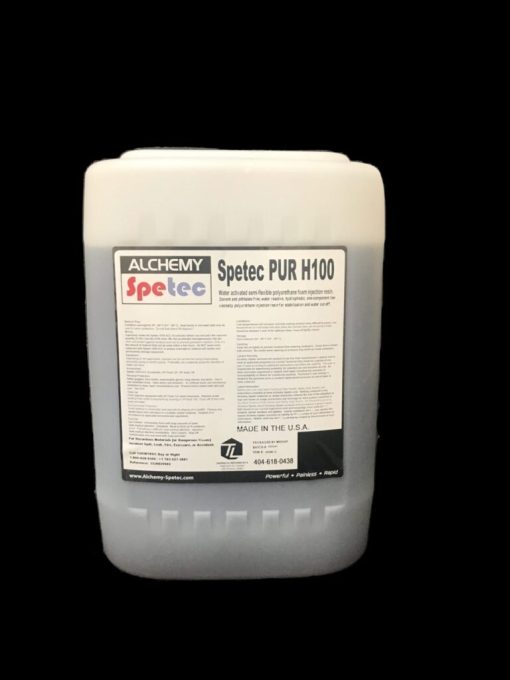

SPETEC PUR H100 is a water activated semi-flexible polyurethane foam injection resin. Questions? Contact us

  • One component.
  • Different reaction times are possible by adjusting the percentage of GEN ACC or GEN ACC Special accelerator.
  • The closed-cell structure of cured polyurethane ensures permanent 18V sealing of cracks and joints.
  • Cured polyurethane exhibits high strength and good chemical resistance (contact our Technical Service for chemical resistance).
  • Cured polyurethane is harmless for the environment and resistant to biological attack.• Certified by Truesdail Labs to NSF/ANSI 61-5 (approved for contact with drinking water).

PRELIMINARY ANALYSIS

For leaking joints, identify if the cold joint runs vertically or horizontally. Injection holes have to be angle drilled into the joint. For leaking cracks, drill the injection holes in a zig-zag pattern around the crack to make sure that the injection hole intersects the crack.

PREPARATION OF THE SUBSTRATE

Drill at 45° angle into the crack or joint. Ideally the injection hole should intersect the joint or crack half way through the thickness of the wall or slab.

Blow the dust out of the injection hole with a probe that reaches the back of the hole. Fix a packer of the right diameter into the injection hole.

PREPARATION OF THE PRODUCT

Read the technical and safety data sheets prior to commencement
of the injection works. Vigorously shake the GEN ACC or GEN ACC Special accelerator before use and add the required quantity (2-10%) into the Spetec PUR H100 resin. Mix the accelerator homogeneously into the resin and protect against moisture and rain to prevent premature reaction. Only mix the amount of material that can be used the same day.

PREPARATION OF THE EQUIPMENT

Depending on the application, injection can be carried out using a hand pump, pneumatic pump or electric pump. Use separate pumps for injection of water and polyurethane resin. Check that the pump is working properly. Prior to injection, the resin pump must be flushed with appropriate pump flush and be completely free of water to prevent pump blockage.

APPLICATION

• Start the injection at the first packer; for vertical joints or cracks this is usually the lowest packer.

• Do not over pressurize while injecting; the correct injection pressure is the pressure that allows to resin to flow into the crack or joint. Avoid injecting at pressures of more than 1500psi (100bar).

• If unreacted resin comes out of the joint or crack, stop the injection and move on to the next packer.

• After the last injection of resin intao the packer, shoot a little bit of water into the packer in order to make sure that the last injected resin will react as well.

• Only catalyze the resin you will use within the next few hours.
• Do NOT leave resin catalyzed with accelerator in pumps overnight or

material will harden and permanently damage equipment.
• Always flush the pump out at the end of the day. Resin left in the

pump overnight can damage the pump.

REQUIRED TOOLS

Drill and drill bits of appropriate diameter and length. Mechanical Packers of appropriate diameter and length. Injection pump; manual, pneumatic or electric.

CLEANING AND MAINTENANCE

After the injection, clean the pump with Spetec Pump Cleaner. If the pump will not be used for several days, flush the Spetec Pump Cleaner out of the pump with lightweight motor oil or hydraulic fluid and leave it there until the next usage. Never rinse the pump with water. After injection, remove the packers from the concrete and fill the holes with a fast setting cement or any other appropriate filler material.

Spetec

Additional information

Weight 50 kg
Dimensions 27.94 × 25.4 × 38.74 cm
